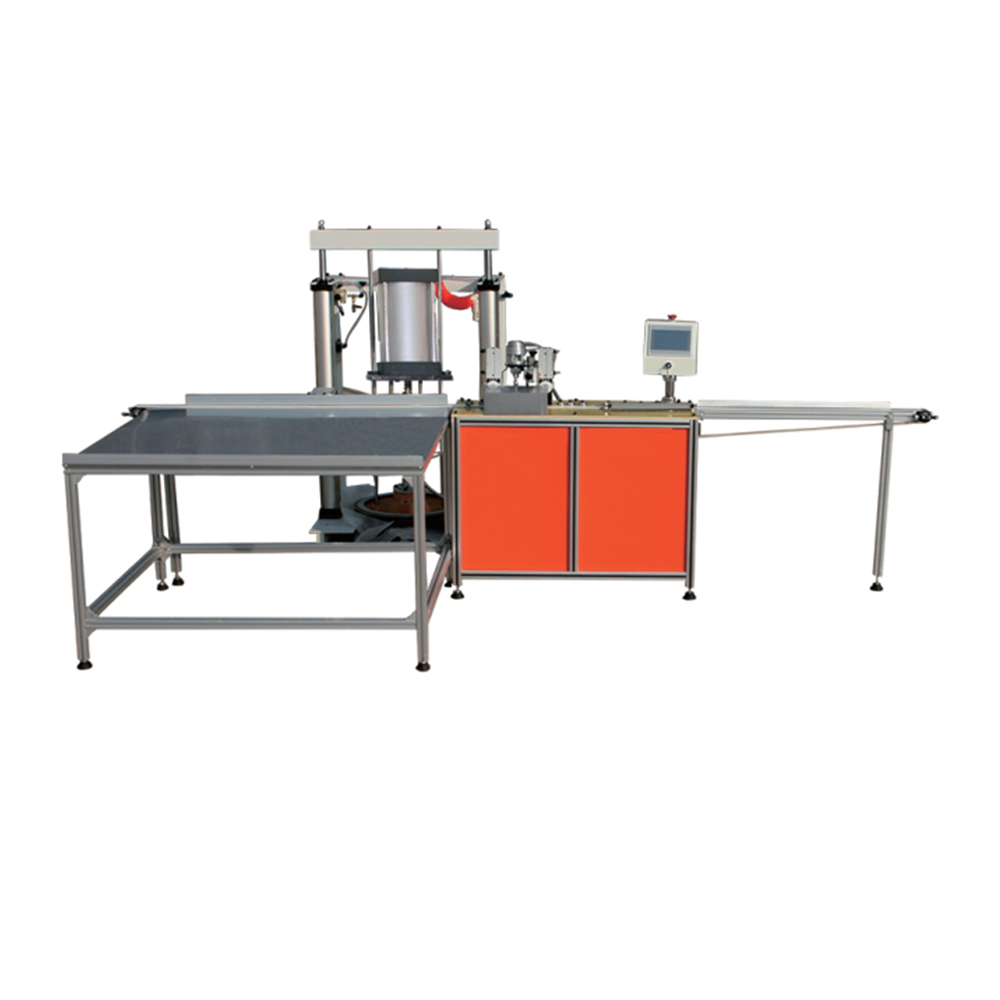

Solar Frame Glue Dispensing Machine
Automatic Frame Glue Dispensing Machine
Model: YHGD-01
Feature of solar Dispensing machine
1.CNC system automatic control, manual feeding, automatic cutting, automatic clamping, automatic gluing, gluing process without artificial support frame.
2.Glue evenly, stable and full, no need to add glue twice after the frame, save labor, save time and save glue.
3.Glue speed and transmission speed computer stepless speed regulation, simple and convenient operation
Specification of Solar Frame Glue Dispensing Machine:
Working Speed: 6-26M/S ≤32s per full set Frame
Max.Length :2200mm
Min.Length: 270mm(ultra-short customized)
Max.Width: 55mm
Min.Width:17mm
Glass Groove Depth: 8-15mm
Power supply: 220V 50Hz
Equipment power: X-axis 200W, total power 2200W
Air source: pressure 0.5-0.6 Mpa
Glue barrel inner diameter : about 565～571mm
Environmental Temperature：0℃~40℃
Environmental humidity: <95%
