Application of solar el tester :

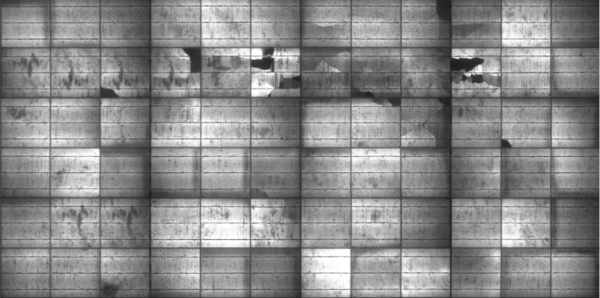

Defects of solar cell material(debris, cracked, broken gate, pollution)
Defects from the welding process(weld, desoldering)
Mix different levels cell
Technology Features:
1.Its highly sensitive infrared camera can defective solar module, which can help users know the solar module and panel from defects in material or workmanship defects
2.The equipment can be applied before and after lamination process, defect .
3.Detector is an important and effective process monitoring and testing equipment
4.It consists of a set of specialized optical imaging systems and high-sensitivity camera module, which is available to user in the preparation process, product quality testing

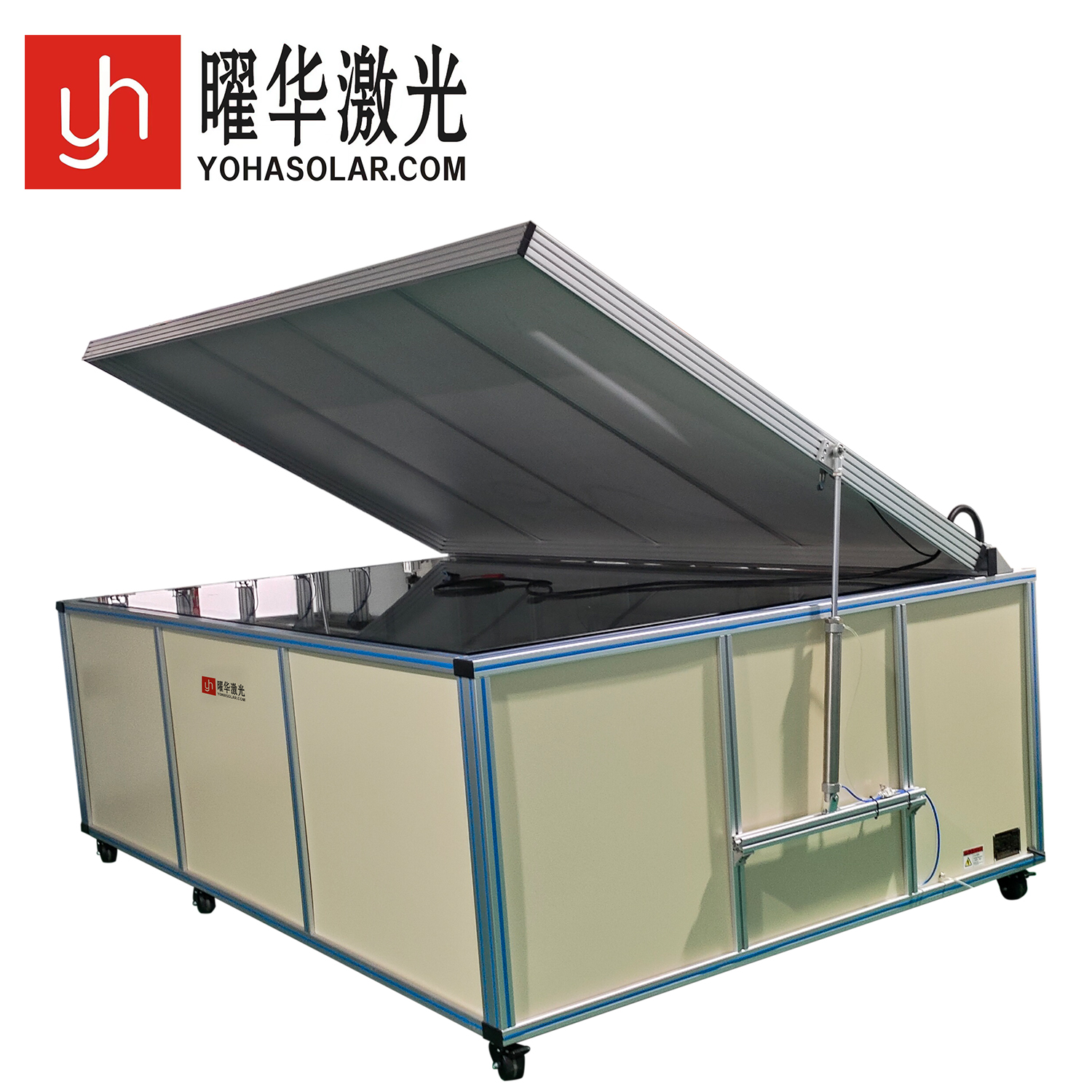

Parameter of solar El tester
Product model | YHEL-1600/2400/ N/A |
Resolution | 6016x4000 Megapixels |
Shooting mode | Sing camera/double cameras/4 cameras/8 cameras |
Sensitivity | Can detect crack width less than 0.2um |
Effective test area | 1200*2000mm /2400mm*1400mm |
Image acquisition time | 1~60s can be adjusted |
Machine size | N/A |
Power | Single-phrase 220V 10A, max load voltage 60V, max load currency10A |
Working environment temperature | -10~40℃ |
SNR | >56dB |
Humidity | 20 ~70% |
Test parameters | Target, Gain, Time, Gamma, Contrast, Data wide |
Include | Cabinet(Include infrared camera)+Computer + Software |
