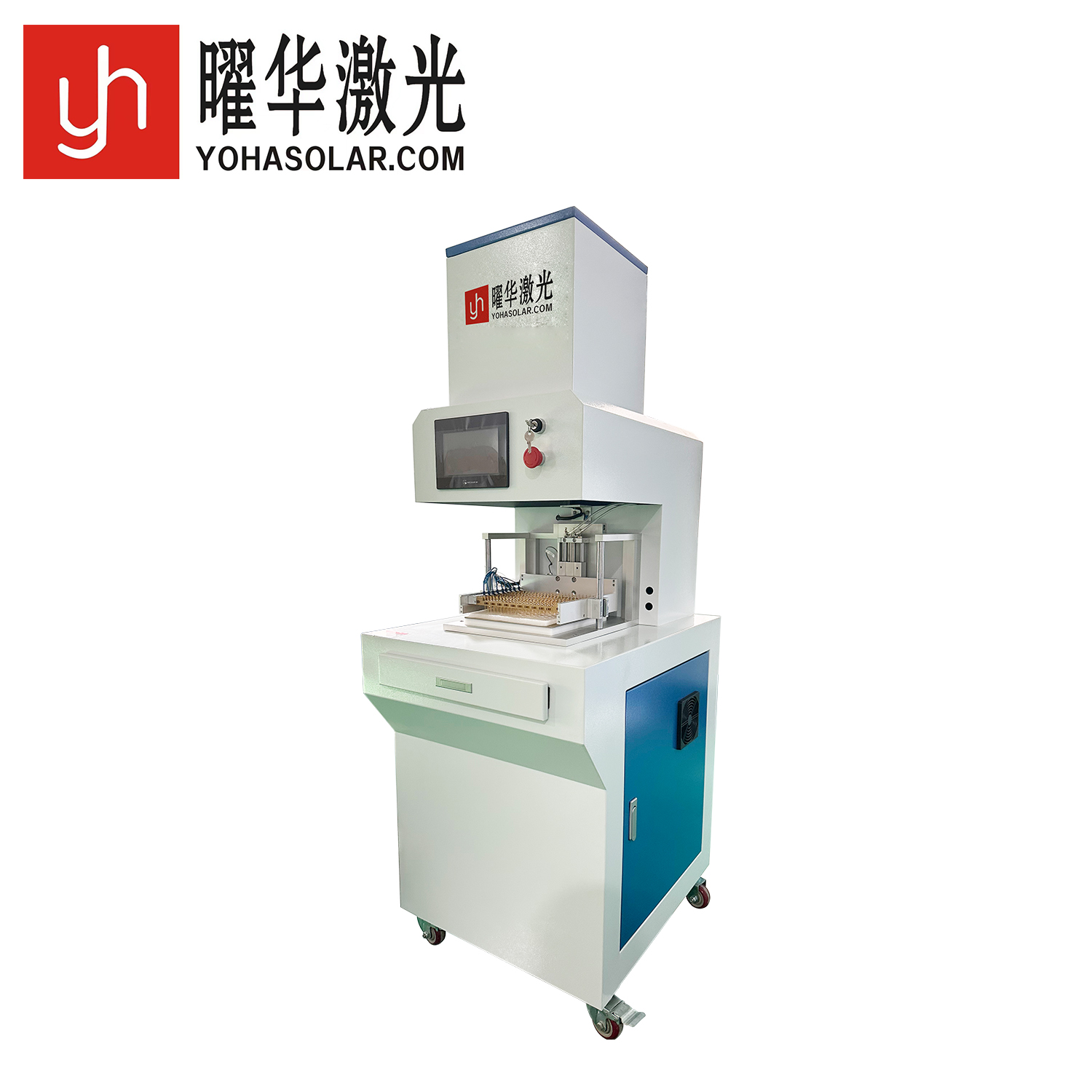

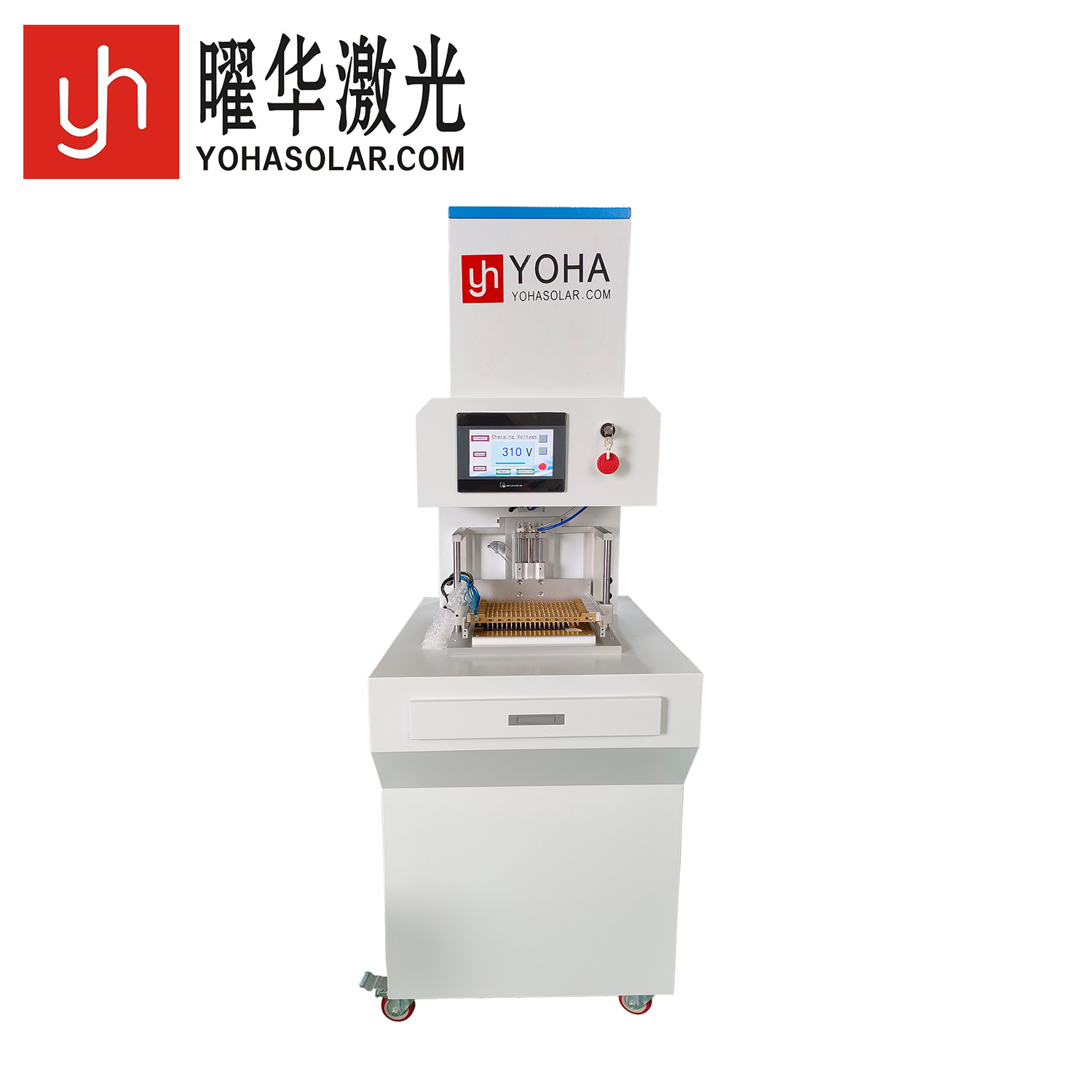

3BB to 12BB Solar Cell IV Flash Tester Simulator
Application:
Used to test the electrical performance of Mono-Si or Poly-si solar cell pieces and record the results in files.
Feature of solar cell IV flasher simulator :
A grade spectrum
A grade unevenness degree of irradiance
Four-line measure, 14-bit 4-channel high speed synchronous acquisition card
10 parameters display and Measurement Parameter display in Tabulation and Graphic way

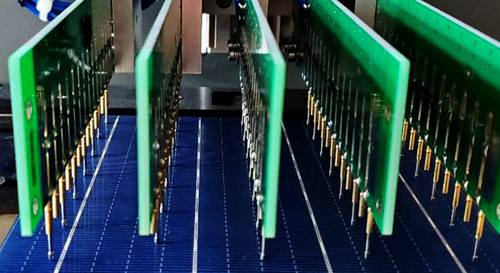

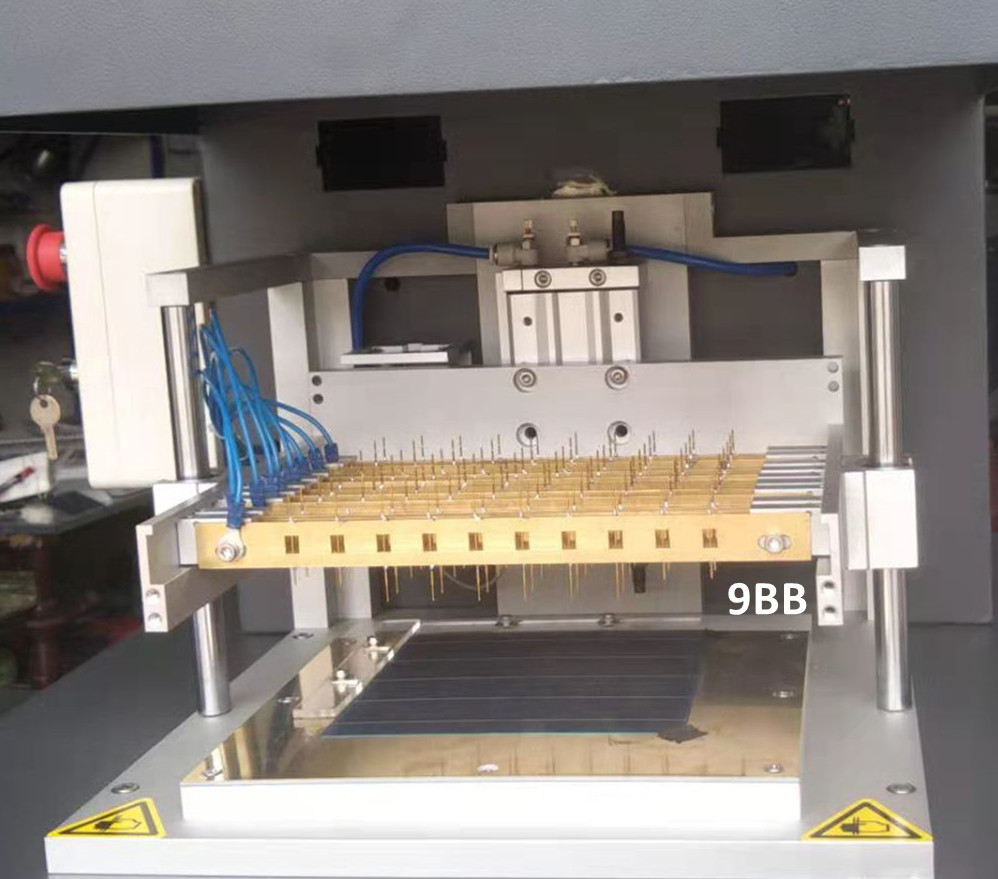

Pneumatic and buffering contact
Temperature automatically compensation
Voice counts off and prompts, Counting prompt of flash
24-hours Continuous working
Specifications of Solar Cell Tester :
1. Test Size: 350X350mm
2. Test rang: 0W-16W
3. Package Measurement: 94CM X 80CM X 210 CM
4. Gross Weight: 158KG
Technical Parameter:
Lamp Spectrum: In line with IEC60904-9 and JISC8933 ( A Grade)
Light Intensity: 100mW/cm2 (continuous adjustable range 20-120W/cm2
Light intensity non-uniformity: ≤ ± 2% AAA
Instability degree of irradiation: ≤ ± 2% AAA
Test result consistency: ≤ ± 0.5% AAA
Test error of electrical properties: ≤ 1% AAA
Single flash time: 10-30ms
Effective test range: 200X200mm(0.1-16W)
Measuring voltage: 0 - 0.8V (resolution 1mV)
Measuring current: 0 - 20A (resolution 1mA)
Test parameters: Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, RSH
Power demand: 220V/50HZ/2KVA
