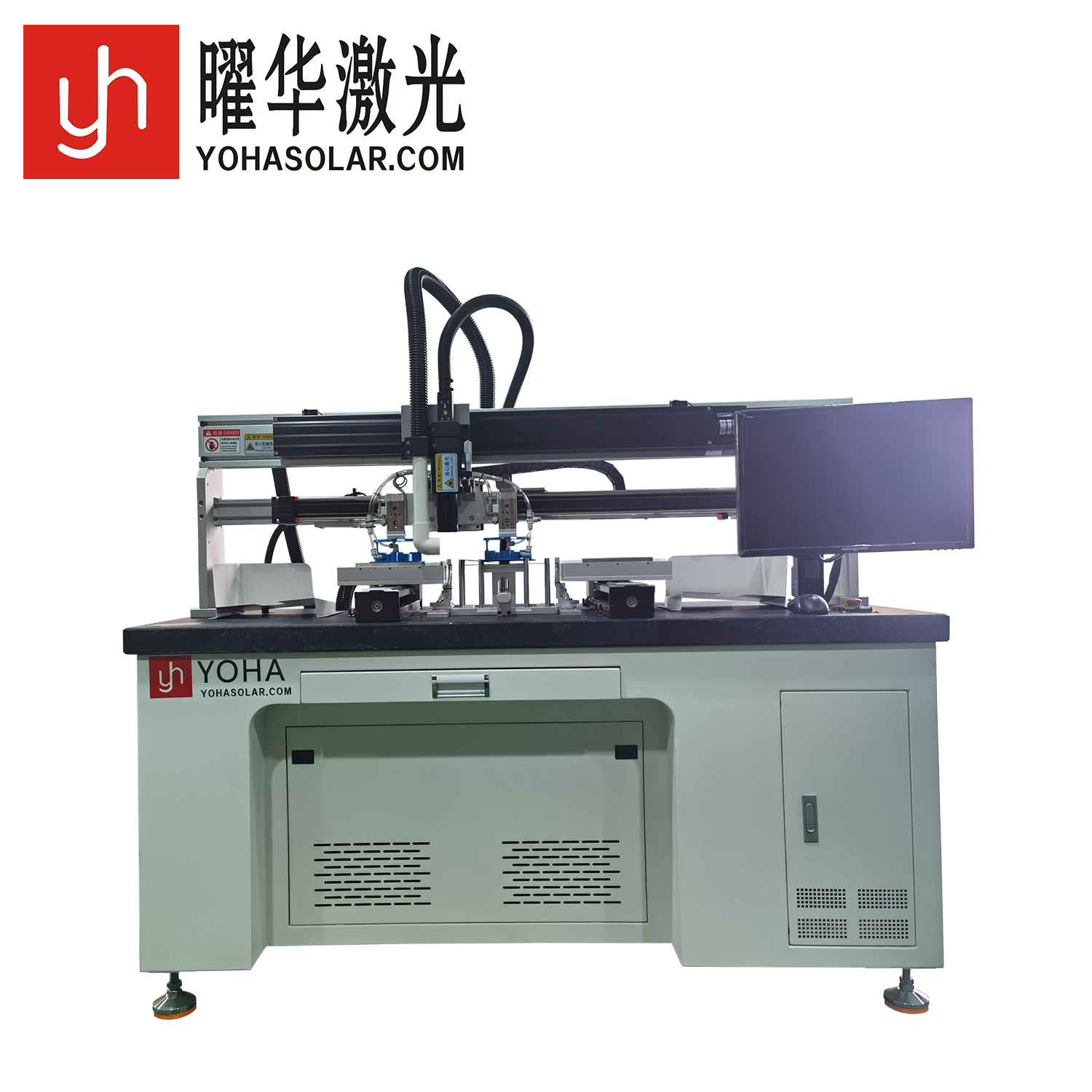

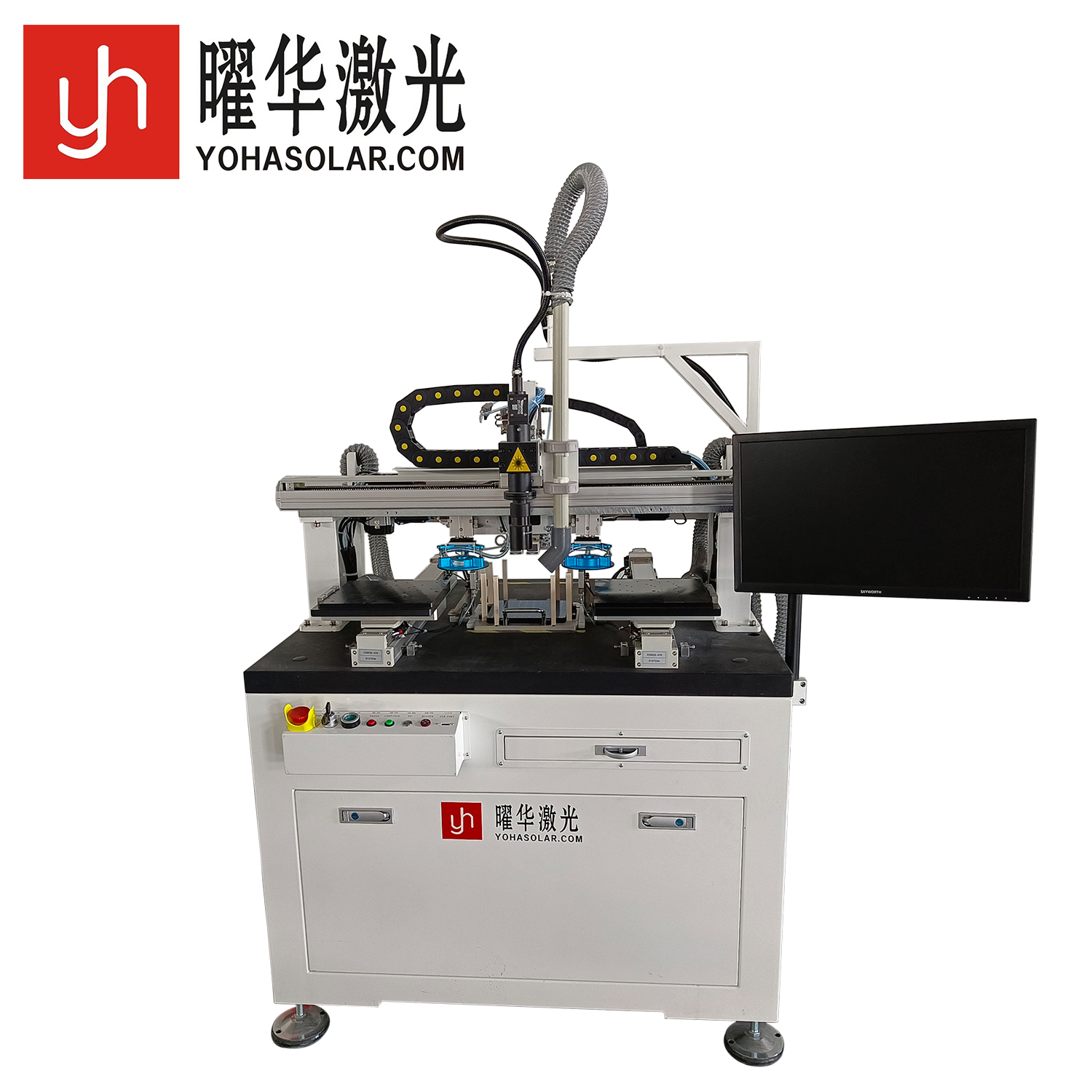

Automatic Solar Cell Laser Scribing Dicing Cutting Machine
It is suitable for the dicing and splitting of monocrystalline silicon and polycrystalline silicon solar cells such as 1/2, and can complete functions such as automatic feeding, automatic positioning and dicing, automatic splitting, and automatic boxing of small pieces.
Features of solar cell laser scribing machine
1. Using 1064nm infrared light source, fixed optical path, good beam quality, thin laser scribing width, small heat-affected zone; more neatly cut section of the cell, less damage to the cell, and accurate cutting
2. High working efficiency, fast laser scribing speed, high degree of automatic scribing of the whole machine, and the equipment production capacity can reach 4000 pieces/hour
3. CCD appearance inspection: high-precision robotic arm takes the film, and the positioning accuracy is ≤0.1.
4. High-precision positioning, CCD visual positioning of the cell, high-precision robotic arm to take the film, positioning accuracy ≤0.1mm.
5. High degree of automation: automatic transmission of material box, automatic loading and unloading of battery slices, automatic positioning, automatic scribing, automatic splitting, automatic boxing of small pieces. Stable performance, low failure rate and simple maintenance.
Spec. of solar cell laser scribing machine:
Model YHC-4000/2000
Laser wave length 1064nm
Laser power 20/30/50W
Scribing width ≤25μm
Scribing speed 400mm/s ~600mm/s
Scribing accuracy ±0.1mm
Positioning Method ccd Positioning
Splitting Mechanical Splitting
Scribing Speed 4000pcs/Hrs2000PCS/h ( the whole cell)
Breakage Rate <0.15%
Scribing Depth 20--120μm ( adjustable )
Solar Cell 156mm*156mm 125mm*125mm
Size of machine 3500×1800×1600MM
G.W 1.5Ton
