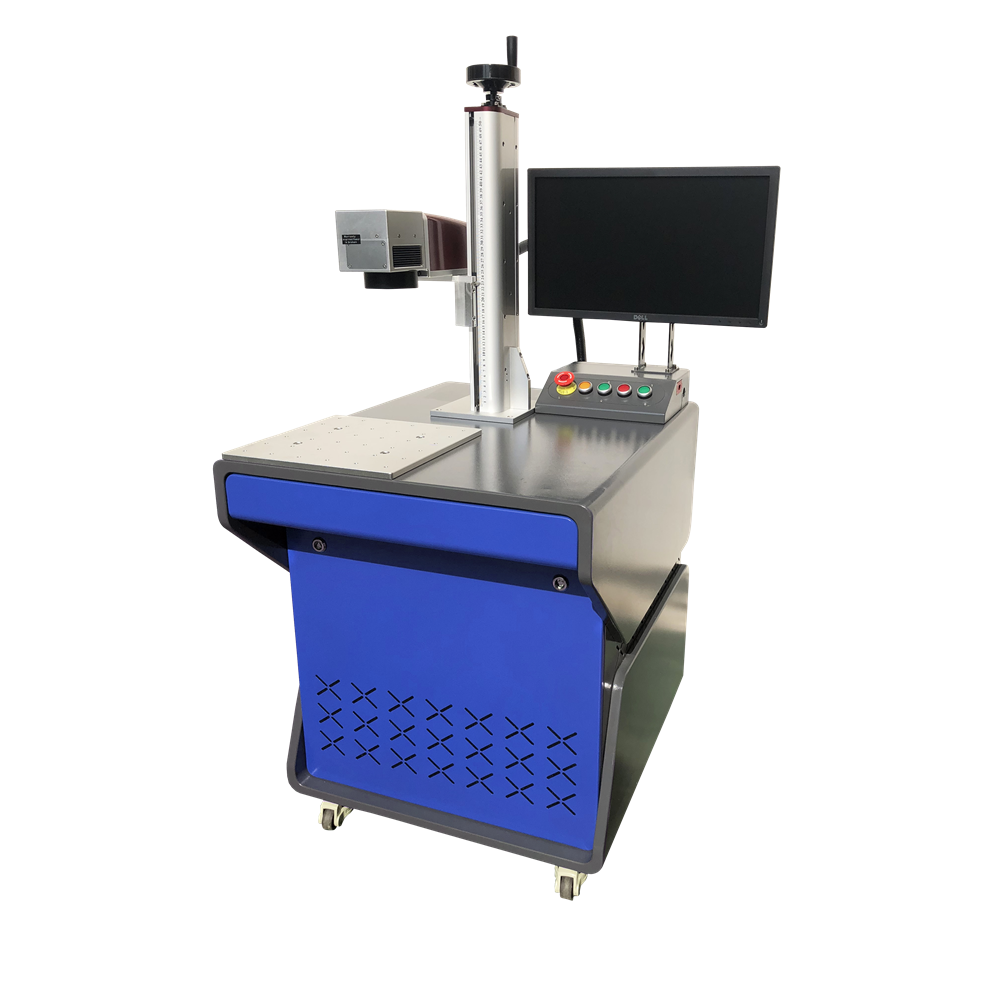

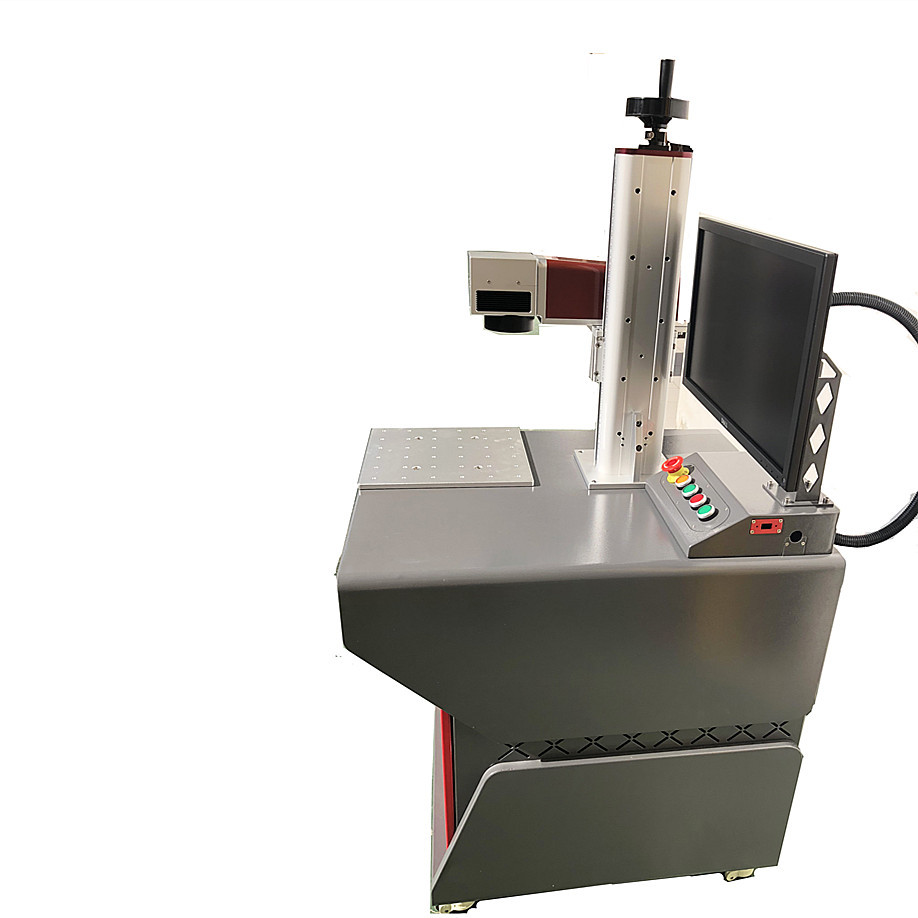

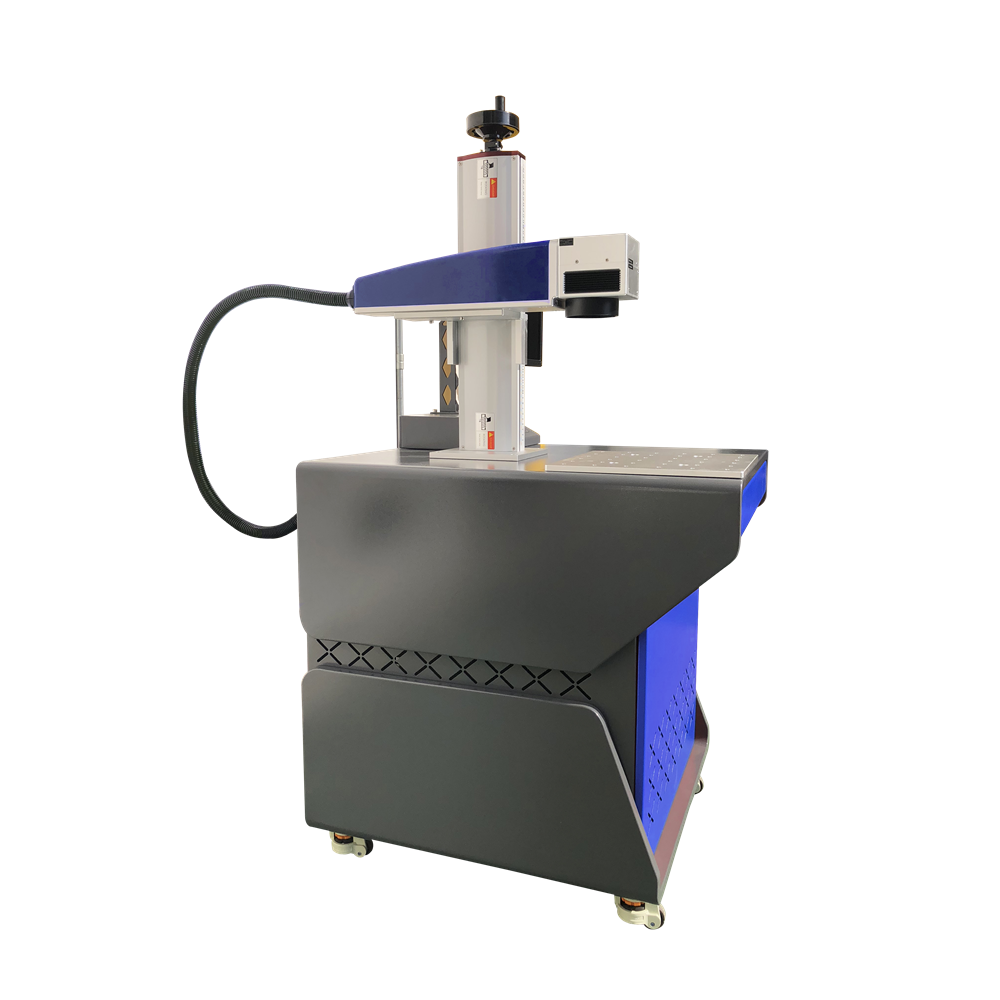

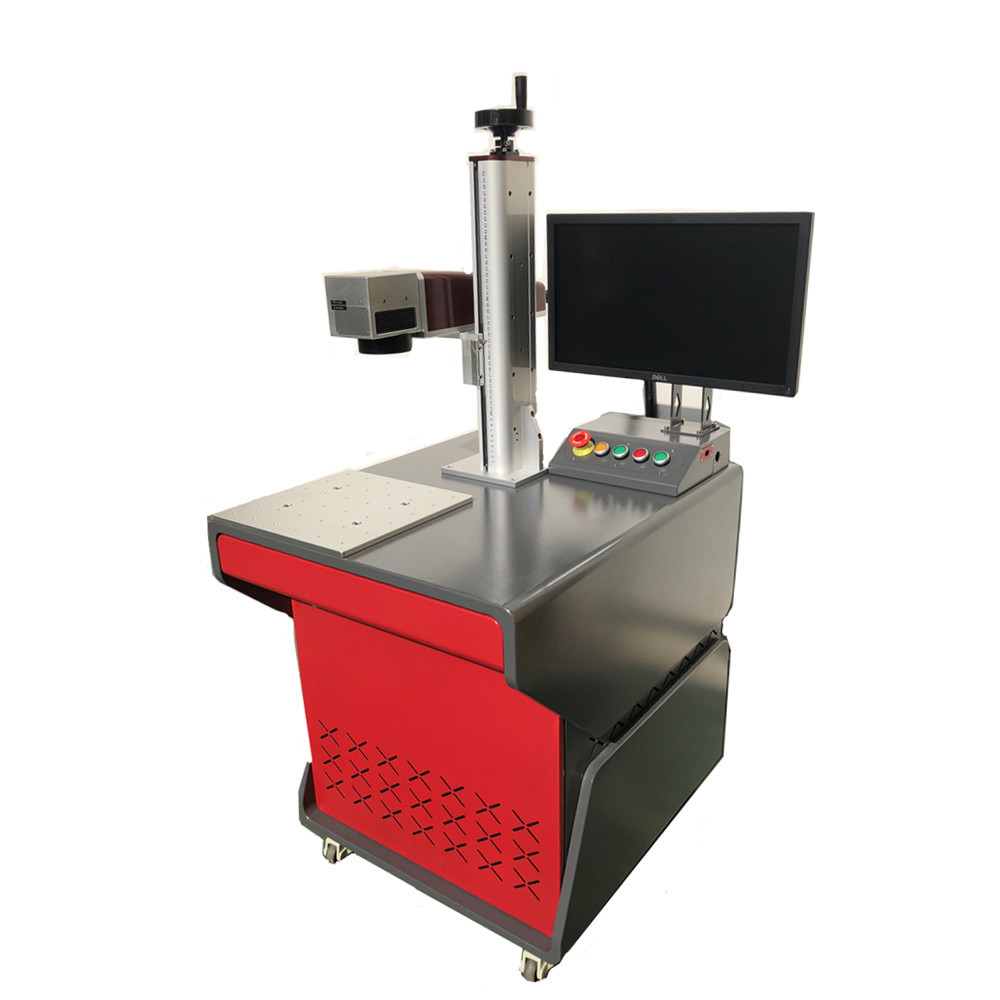

Desktop Laser Marking Machine
It can be used in marking of metallic and non-metallic materials, and can mark the time, date, text, serial , company logos, icons, symbols, barcodes and any letter you want on your product. and when the power is greater than 30w, the fiber laser can not only mark but also engrave and cut in depth a thin metal plate, whats's more, We also supply mopa type fiber laser to mark colors on stainless steel and titanium, mark black on anodized aluminum, stainless steel and some kinds of plastic.
Spec. of desktop laser marking machine:
Power | 20W/30W/50W/ |
Laser Wavelength | 1064μm |
Marking Area | 110mm*110mm, optional 70*70mm, 145*145mm, 175*175mm, 200*200mm, 300*300mm or more |
Marking Depth | 0.01-5mm |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.015mm |
Minimum Character | 0.2mm |
Repeated Precision | ±0.003mm |
Controller(Software-EzCAD) | JCZ Brand EZCAD |
Lifespan of Fiber Laser Source | 100000 hours |
Focus Spot Diameter | <0.01mm |
System Operating Environment | WINDOWS XP/7/8/10 |
Cooling Mode | Air Cooling |
Working Temperature | 0℃-40℃ |
Voltage | 220V/50Hz or 110V 60Hz |
Power | 500W |
Sample of desktop laser marking machine：
