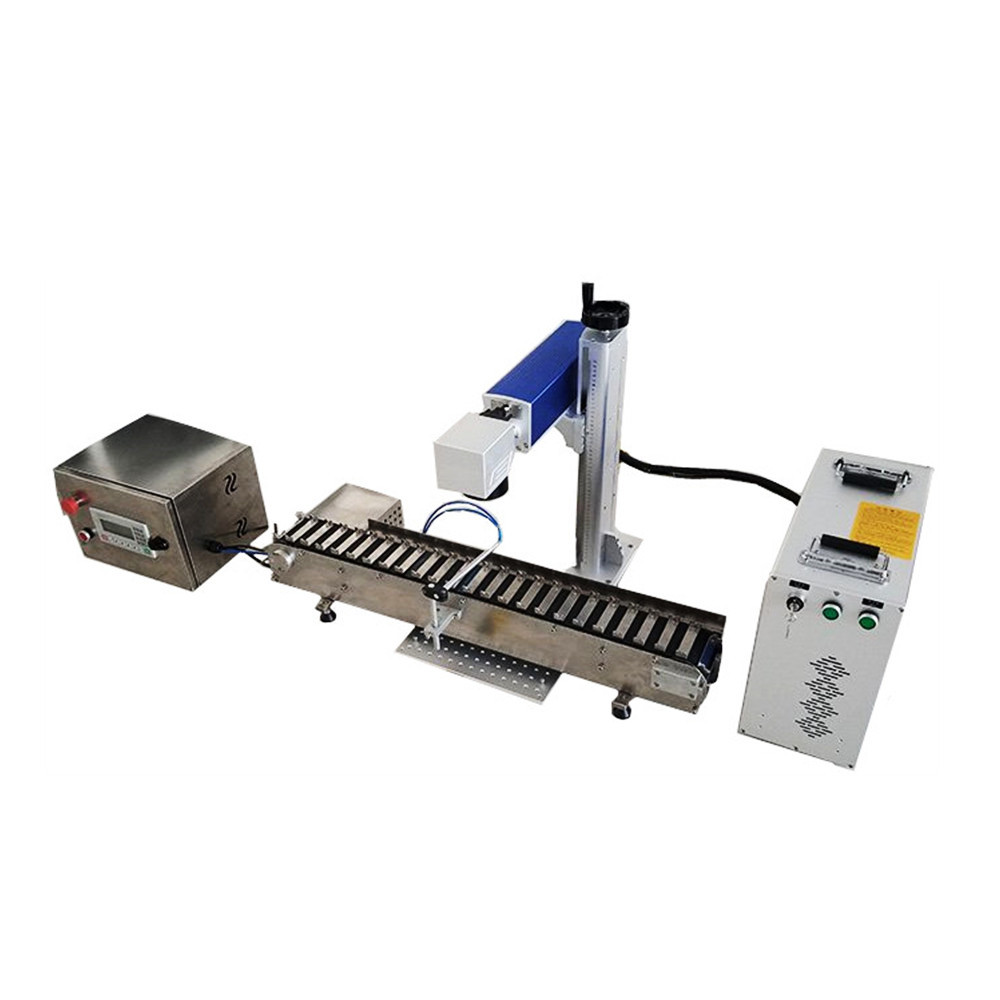

Online Flying Laser Marking Machine
Online flying laser marking processing is suitable for batch marking with hi-speed.
Which is more popular use in production line .
Through online flying moving transmission station,rotary clamp , miti-station and etc ,It achieves fast ,hi-efficient working , save man-power .
Spec. of online flying laser marking machine:
Model NO. | YH-10F | YH-20F | YH-30F | YH-50F |
Laser Power(W) | ≥10 | ≥20 | ≥30 | ≥50W |
Galvo Marking Speed | ≥7m/s | ≥7m/s | ≥7m/s | Max 9m/s |
Marking Area | 110mm | 110mm | 110mm | 175mm |
Marking Focus | 180mm | 180mm | 180mm |
|
Marking Content | Vector, bar code, a variety of fonts, photos, and other formats |
Marking Mode | static state and dynamic state |
On-line Speed | ≤120m/min | Depends on marking content |
Operating Temperature | 5-35°C |
Operating Humidity | Relative humidity is less than 95%, No condensation |
Structural Materials | good-quality aluminum alloy, stainless steel |
Edit Mode | Computer software to edit |
Communication Interface | USB, RS232 interface |
Power Supply | AV220V~100V /50Hz~60HZ |
Rated Power | 500W | 800W |
1000W |
Optional Accessories | Sensor, On-line detection speed encoder, rotary marking, equipment cabinet, laser generator support | foot switch |
Option of online flying device :
